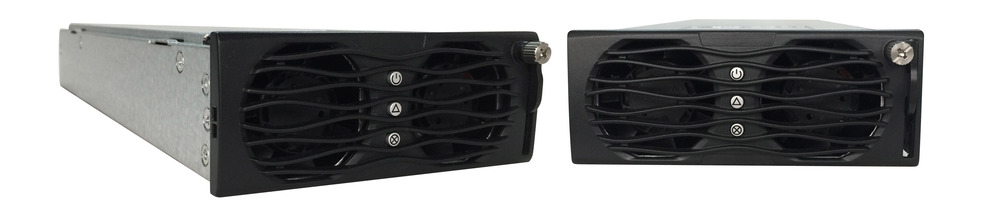

Rectronic Technologies R830H 3.0kW 48V High Efficiency Rectifier Modular

The R830H is a high efficiency telecommunications grade rectifier with the following features:
1. Hot pluggable
2. Forced Air Cooled
3.Thermally Protected
4. Power Factor Corrected
5. Wide input AC Voltage
6. Constant Power Output Limit
7. Input/Output Voltage and Current Protected
8. Active Load Sharing
9. Serial alarm and control interface
10. Microprocessor controlled

Enquire now

Technical data

AC Input

  • Nominal Voltage: 230VAC
  • Voltage Range: 85-300VAC(185-275VAC not de-rating output power)
  • Input Current: 20A Max.
  • Frequency Range: 45-65Hz
  • Power Factor: >0.99(above 75% load)
  • Efficiency: >96.2% peak

DC Output

  • Output Ratings: Constant power output from 48VDC to 60VDC
  • Nominal Voltage: 48VDC
  • Voltage Range: 42-58VDC
  • Input Current: 62.5A Max.(@48VDC output voltage)

Environmental

  • Operating Temperature: -40 to +65℃(maximum output power is derated above 55℃)
  • Storage Temperature: -45 to +70℃
  • Humidity: 5-95%RH(non-condensing)
  • Altitude:

Mechanical

  • Dimensions,W,H,D: 106.5mm,41.5mm,286mm
  • Weight: 1.85kg
